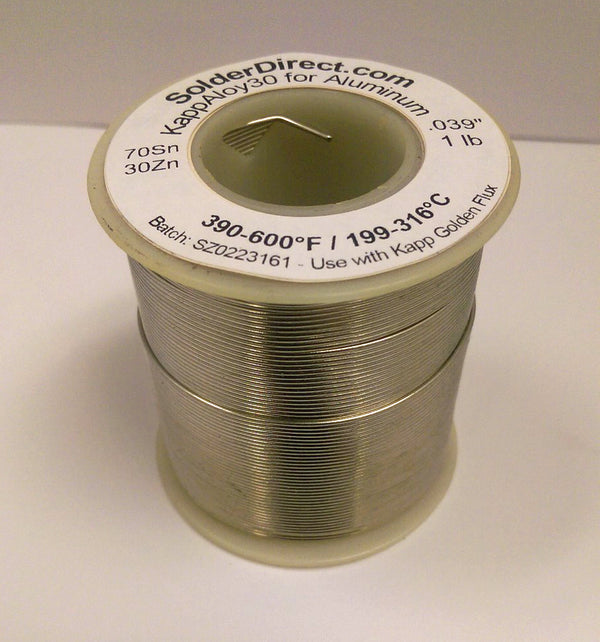

KappAloy30 - .039" (1mm) x 1 lb Spool
$49.50
70Sn/30Zn for high strength hand soldering Al to Al and Cu. Slushy range (390 - 650°F / 199 - 343°C) for joint build up and adjustment. Solid -.039" (1mm) diameter x 1 lb spool. -

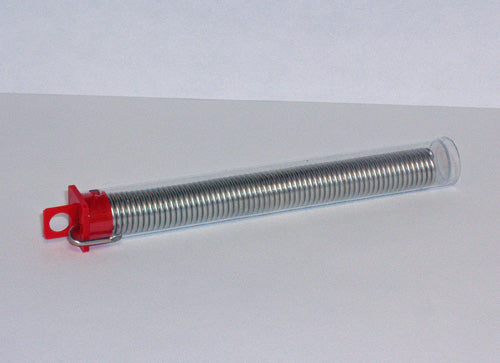

KappAloy30 - .039" (1mm) x 14 ft tube
$24.50
70Sn/30Zn for high strength hand soldering Al to Al and Cu. Slushy range (390 - 650°F / 199 - 343°C) for joint build up and adjustment. Solid -.039" (1mm) diameter x 14 ft in tube. -

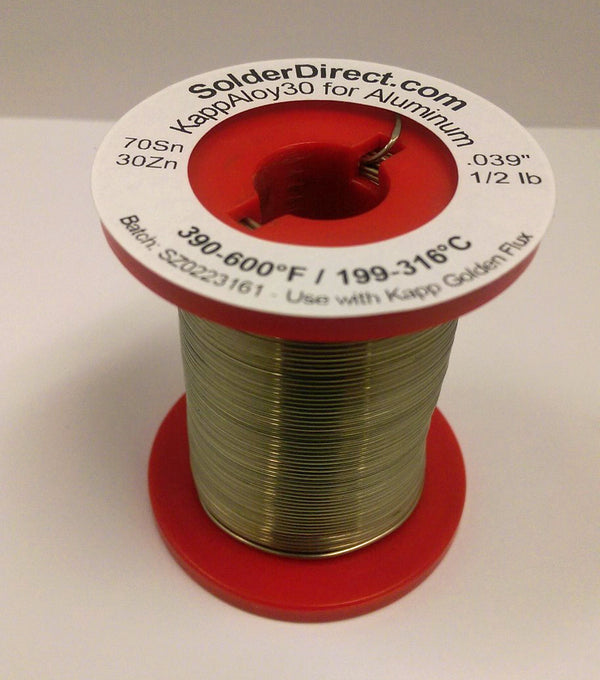

KappAloy30 - .039" (1mm) x 1/2 lb Spool
$34.50
70Sn/30Zn for high strength hand soldering Al to Al and Cu. Slushy range (390 - 650°F / 199 - 343°C) for joint build up and adjustment. Solid -.039" (1mm) diameter x 1/2 lb spool. -

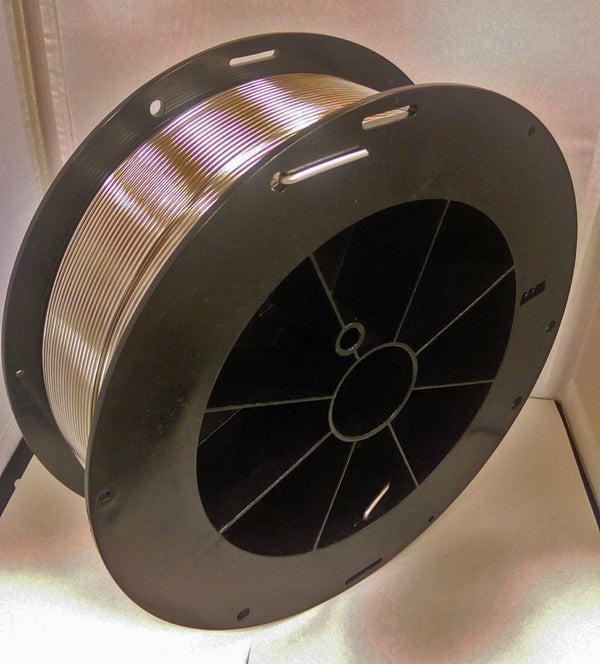

KappAloy30™ - 70Sn/30Zn - .187" (4.8mm) x 25 lb spool
$500.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .187" (4.8mm) x 25 lb spool. -
KappAloy30™ - 70Sn/30Zn - .098" (2.5mm) x 25 lb spool
$525.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .098" (2.5mm) x 25 lb spool -
KappAloy30™ - 70Sn/30Zn - .079" (2mm) x 25 lb spool
$525.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .079" (2mm) x 25 lb spool. -
KappAloy30™ - 70Sn/30Zn - .062" (1.6mm) x 25 lb spool
$550.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .062" (1.6mm) x 25 lb spool. -

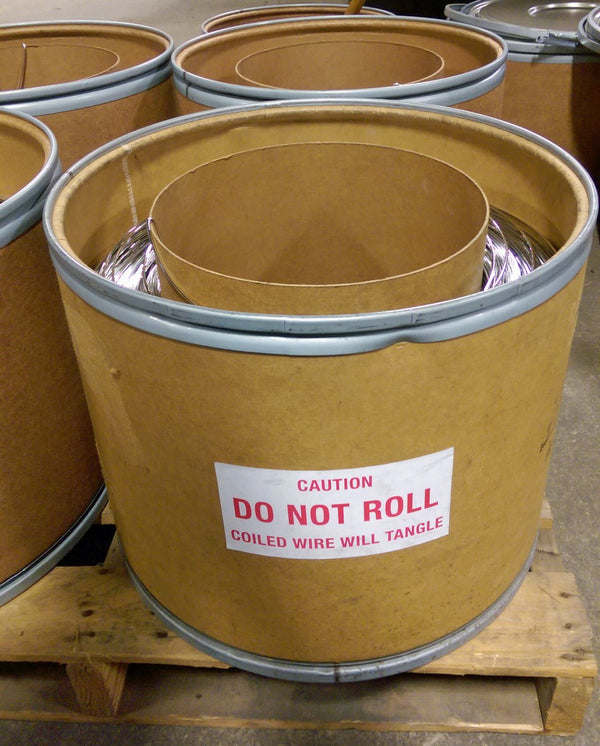

KappAloy30™ - 70Sn/30Zn - .125" (3.6mm) x 250 lb POP
$5,125.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .125" (3.6mm) x 250 lb Payour Pak. -
KappAloy30™ - 70Sn/30Zn - .125" (3.6mm) x 25 lb spool
$512.50
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .125" (3.6mm) x 25 lb spool. -
KappAloy30™ - 70Sn/30Zn - .098" (2.5mm) x 250 lb POP
$5,250.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .098" (2.5mm) x 250 lb Payout Pak. -
KappAloy30™ - 70Sn/30Zn - .079" (2mm) x 250 lb POP
$5,250.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .079" (2mm) x 250 lb Payout Pak. -
KappAloy30™ - 70Sn/30Zn - .062" (1.6mm) x 250 lb POP
$5,500.00
70Sn/30Zn Spray Wire provides barrier coating, electromagnetic and radio-frequency shielding for capacitors and other electronic components. .062" (1.6mm) x 250 lb Payout Pak.
70Sn/30Zn Lead-Free Spray Wire
KappAloy30™ Tin-Zinc spray wire meets or exceeds coating specifications for many applications at a lower cost than #2 Babbitt or KappAloy20™ spray wires. Talk to our tech support representative to determine if KappAloy30™ is a viable option for your application specs.
Applications
KappAloy30™ is used extensively in spray wire form to coat the ends of capacitors and other electronic parts to provide a hermetic seal, EMF/EMI protection, and corrosion resistance. Like Tin surfaces, the coatings are easily solderable. As with Zinc, the coating has substantial oxidation resistance.
Properties
|
Composition |
|
|
Sn (Tin): |
70% |
|
Zn (Zinc): |
30% |
|
|
|
|
Technical Data |
|
|
Melting Range: |
390-600°F (199-316°C) |
|
Density: |
7.27 g/cm3 |
|
Tensile Strength: |
3,626-5,076 psi (25-35 N/mm2) |
|
Hardness (HV): |
17.9 |
|
Calority: |
69 J/g |
Product Variants
KappAloy30™ is available in standard spray wire forms:
- 1/8” (0.125”) (3.2mm)
- 0.098” (2.5mm)
- 0.079” (2mm)
- 0.062” (1.6mm)
Custom alloys and forms are our specialty. Call a Kapp representative to discuss what size and diameter are right for you.
Click here for KappAloy30™ Technical Data Sheet
Click here for KappAloy30™ Safety Data Sheet
Click here for instructions on how to use KappAloy30™
